PS-3315

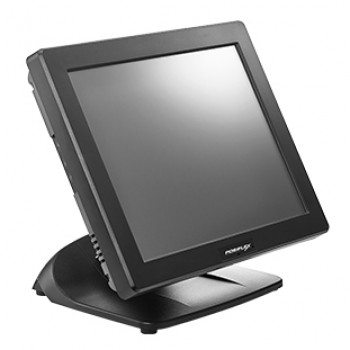

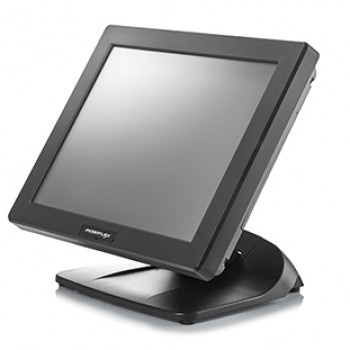

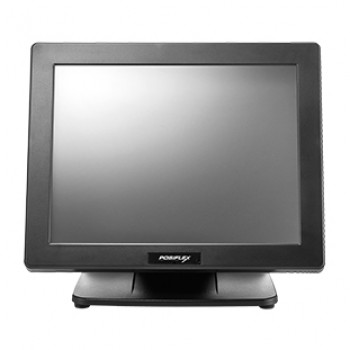

The PS-3315 is a 15" fanless touch POS Terminal with all the essential functions and capabilities to satisfy businesses of all sizes, and represents one of the best value choices in the entry-level POS Terminal segment.

Entre em Contato Conosco!

Características

Slim e Flexível

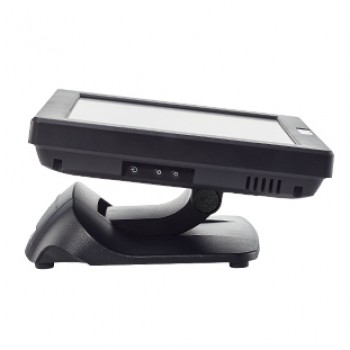

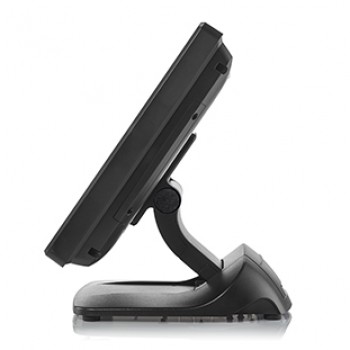

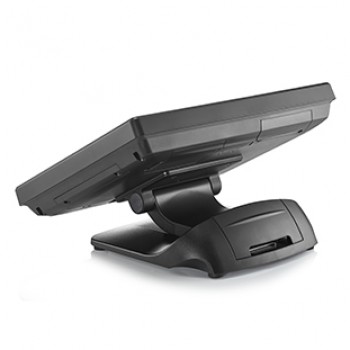

Design simplificado equipado com uma base dobrável; O PS-3315 oferece aos usuários flexibilidade inigualável para ajustar a tela a uma altura e ângulo, dependendo da aplicação.

Expansível e Organizado

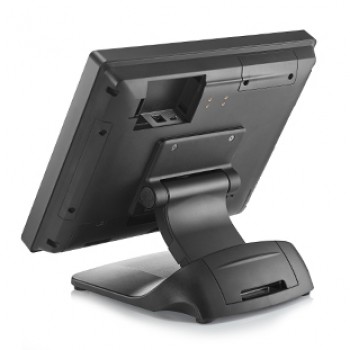

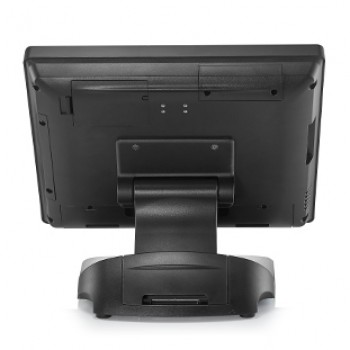

Projetado para gerenciar melhor a conectividade periférica ao separar um conjunto completo de portas nas partes superior e inferior do terminal, o PS-3315 garante um cabeamento periférico limpo e confiável.

Especificação

System Configuration
Processor	Intel Bay Trail N2807 Dual Core CPU, up to 2.16 GHz, 1M Cache
System Memory	DDR3L SO-DIMM x 1, max. 4GB
Storage Device	SATA x 1
RAID Function	N/A
Intel vPro Support	N/A
TPM Support	N/A
Power Supply	12V/130W
OS Support	Win 7/POSReady 7/WE 8.1 Industry/Win 10 IoT/Linux per request
Display & Touch
LCD	15″ TFT LCD
Resolution	1024 x 768
Touch	5-wire Resistive touch
I/O & Expansion
Serial Port	4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port	1, via optional conversion cable through service window
Standard USB Port	USB 2.0 x 5
PoweredUSB Port	N/A
LAN Port	10/100/1000 Mb x 1
Display Port	VGA x 1, 12V support for Posiflex monitors
CR Port	1, control 2 CR via optional Y-cable
PS/2 Port	1, via optional conversion cable through service window
UPS Port	N/A
Audio	Buzzer only
Expansion Slot	N/A
Physical Dimension
Dimension (W x D x H in mm)	372 x 320 x 252.7
Weight (N. W. in kg)	5.86
Environmental
Operating Condition	0°C – 40°C, 20%RH – 90%RH (Equipped with HDD); 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)
Storage Condition	-20°C – 70°C, 10%RH – 90%RH
Built-in Options
WiFi	USB WiFi dongle
* The product information and specifications are subject to change without prior notice.

Download

Upload Date	Description	Version	Size	Language
2016-08-04	Manual de Uso para o modelo PS-3315/ PS-3315E/ PS-3316/ PS-3316E (EN)	F0	608 KB	English
2017-09-28	Folder Digital modelo PS-3315/3315E	2017Q3	216 KB	English
2018-08-14	Guia de Soluções POSIFLEX (EN)	2015	4.0 MB	English
